STANDARD MODULAR RAMP

This ramp system is designed for temporary and residential use, incorporating essential safety measures to mitigate falls, accidents, and injuries in a home environment. The system strictly follows the guidelines outlined in residential ramp regulations (Part M & K).

For public buildings such as schools, we strongly endorse our fully compliant ramp, as it boasts supplementary safety elements like infill handrails, vivid yellow treads, and a minimum width of 1500mm, ensuring the highest level of safety.

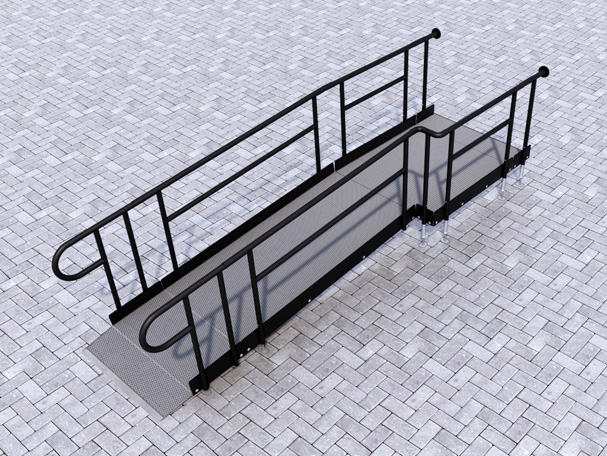

Rapid Ramp - Standard Rmap

Request A Quick Price
Ramp Calculator

PRODUCT FEATURES & BENEFITS

Fire Resistant

Unlike wood, steel ramps will not typically burn if exposed to fire.

Warm To Touch Handrail

Handrails do not become excessively cold or hot to touch.

Loading Capacity: 1,000kgs

Available in an infinite number of configurations, widths, lengths and heights.

Fully Adjustable

Available in an infinite number of configurations, widths, lengths and heights.

Fully Reusable & Recyclable

Ramps can be reused, reconfigured, and recycled.

Fully Document M & K Compliant

Ramps fully comply with Part M & K of the Building Regulations.

WIDTHS AVAILABLE:

  • 900mm – The minimum width for ‘Dwellings’. Approved Document M1 & the British Standards BS 8300-1:2018.
  • 1000mm – Our suggested width for ‘Dwellings’. Approved Document M1 & the British Standards BS 8300-1:2018.
  • 1200mm – The minimum width for ‘Communal’ residential usage. Approved Document M1 & the British Standards BS 8300-1:2018.
  • 1500mm – The minimum width for ramps for ‘buildings Other Than Dwellings’. Approved Document M2 & the British Standards BS 8300-1:2018
  • Customisable – Any of platform widths stated above can be bolted together to make up a customised width.

OPTIONAL EXTRAS:

Scroll down the page to view the selection of extras available.

Within your enquiry, please do indicate which extras you require from the list shown.

WIDTH & GRADIENT FOR A COMPLIANT DWELLING RAMP:

A dwelling ramp purchased via the council must have a gradient no less than 1:12 (4.7 degrees) and minimum width of 900mm, as stated in Documents M and K of the Building Regulations.

SELECT THE OPTIONS TO CONFIGURE YOUR QUOTE

Standard modular ramp Standard Features

Mesh platform

This self-draining mesh platform allows water to pass through rather than puddle on the surface and potentially freeze.

Minimum width: 900mm.

Trombone Ends

These components are attached to the ends of a Rapid Ramp to prevent any snagging of clothing.

Telescopic Legs

Thanks to their adjustable design, the legs are customisable to suit various threshold heights.

Standard Handrail

Designed to provide stability and support.

These are coated with thermosetting powder to provide a non-conductive, non-slip and scratch resistant surface.

Standard Colour: Black

Our ramps undergo a black powder coating process, resulting in a robust finish that surpasses traditional paint in durability.

Standard modular ramp Optional Extras

Select from the list of extras below, then complete the contact form at the bottom of the page:

Enquire

RAL-

If you do not know which RAL colour you require please leave this blank. We will contact you to discuss colours.
